MeLE Quieter DL N150 Fanless Mini PC | Dual Intel® I226-V 2.5GbE LAN, Intel N150, Triple 4K Display, Firewall Router PC for Home Lab, NAS & IoT

About this item

[Dual Intel I226-V 2.5GbE Ports]

Quieter DL is equipped with dual Intel® I226-V 2.5GbE high-speed LAN ports, allowing simultaneous connection to two independent networks. This enables physical isolation between internal and external networks, effectively reducing network security risks while improving network stability and reliability. Compared with ordinary network cards, Intel NICs offer better compatibility and more stable driver support, making Quieter DL ideal for soft router setups (pfSense, OPNsense), HomeLab environments, virtualization platforms (Proxmox), NAS, and home server applications.

[Intel N150 Processor & Fanless Silent Design]

The MeLE Quieter DL is powered by the Intel® Twin Lake N150 processor (up to 3.6GHz, 6MB Intel® Smart Cache) and features either 4266MHz LPDDR4x or 3200MHz DDR4 high-speed memory, delivering smooth and responsive performance for everyday computing and multitasking.

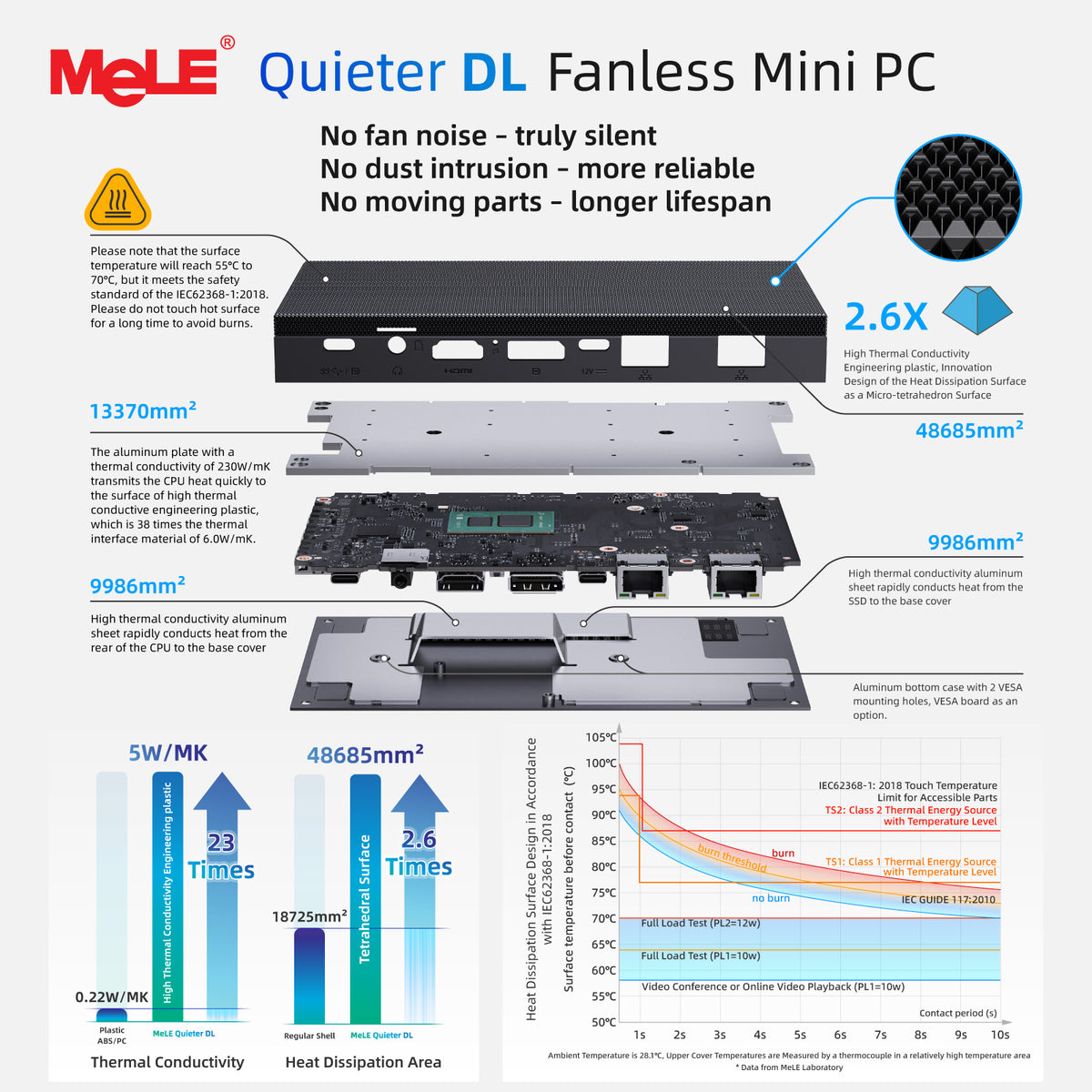

Featuring MeLE's patented fanless cooling design, the Quieter DL operates with zero noise and zero dust intake, making it ideal for dusty environments, open offices, software development, debugging, and other applications that require reliable 24/7 operation. It is fully compatible with Windows and Linux operating systems, including Ubuntu and Debian.

[Support 4K Triple Display]

MeLE QuieterDL mini computer supports 1x HDMI 2.0+ 1x USB Type-C (DP1.4) + 1x DP1.4 4K Triple display, supports 4K local video playback and 1080p online video playback due to its fanless and low power consumption design (TDP=8W). Three graphics output interfaces can be easily connected to three monitors at the same time, ideal for multitasking office work (improve work efficiency), video conferencing, financial transactions, real-time monitoring, digital signage.

[Full-Function USB-C interface]

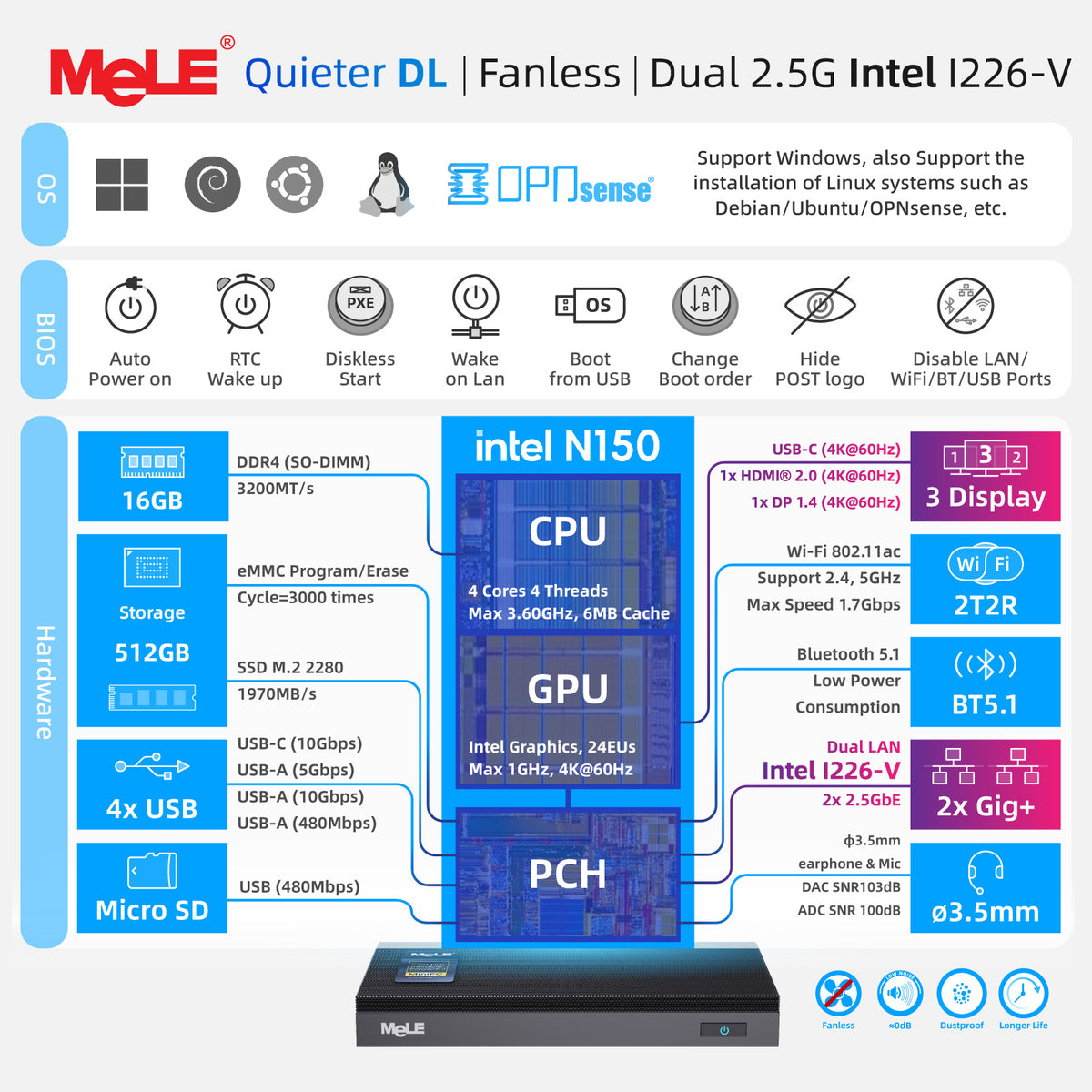

USB Type-C (DP1.4 ) interface supports 4K UHD Graphics output, data transmission (USB3.2 Gen 2=10Gbps) and Power input(With PD3.0 protocol ,12-18V), all in one cable. Supports bidirectional power supply, increase charging power supply options. Equipped with 2.4GHz/5GHz WiFi AC9560 (TX/RX Streams 2T2R, Support 160MHz Band, Max Speed 1.7Gbps) and BT5.1. Unlocked BIOS, support Auto Power On/ S5 RTC Wake/ Wake on LAN/PXE/USB Boot/BIOS Reset.

[Mini-sized & Large Storage]

This micro pc is only 6.61*3.74*0.84 inches, 0.95 lb, 0.34L. You can also mount the mini PC behind the monitor with the VESA mount, give you a tidy desktop environment. Supports M.2 2280 SSD and Micro SD (Micro SD is not contained). 512GB mini desktop is built in PCIe3.0x2 SSD SSD which is 1970MB/S, faster than eMMC and SATA SSD.

Product information

Additional detail

Feature	Latest N150	Classic N100
Processor	Intel® Twin Lake N150	Intel® Alder Lake N100
Operating System	OS-P	OS-P
Base Frequency	800MHz	800MHz
Max Turbo Frequency	3.6GHz	3.4GHz
Cache	6 MB Intel® Smart Cache	6 MB Intel® Smart Cache
Total Cores	4	4
Total Threads	4	4
TDP	8W (LPDDR4x) / 7W (DDR4)	8W (LPDDR4x) / 7W (DDR4)
Graphics	Intel® Graphics	Intel® Graphics

Ports

HDMI	1 × HDMI (female)	1 × HDMI (female)
DisplayPort	1 × DP 1.4 (4K@60Hz)	1 × DP 1.4 (4K@60Hz)
USB Type-C	1 × USB Type-C (DP1.4 / PD3.0 / USB 3.2 Gen2 )	1 × USB Type-C (DP1.4 / PD3.0 / USB 3.2 Gen2 )
Audio	1 × 3.5mm earphone & Mic	1 × 3.5mm earphone & Mic
Ethernet	2 × RJ-45 Gigabit Ethernet Port (Intel I226-V, 2.5GbE)	2 × RJ-45 Gigabit Ethernet Port (Realtek RTL8111H, 2.5GbE)
USB	1× USB3.2 Gen2 (10Gbps) 1× USB3.2 Gen1 (5Gbps) 1 × USB 2.0 (480Mbps)	1× USB3.2 Gen2 (10Gbps) 1× USB3.2 Gen1 (5Gbps) 1 × USB 2.0 (480Mbps)
Power	1 ×USB Type-C (12V / 3A)	1 ×USB Type-C (12V / 3A)

Memory (RAM)

What's in the box :

1 × Quieter DL mini PC
1 × VESA Mount
1 × 12V/3A USB Type-C Power Adapter (UL / GS / UK / SAA Plug)
1 × User Manual
